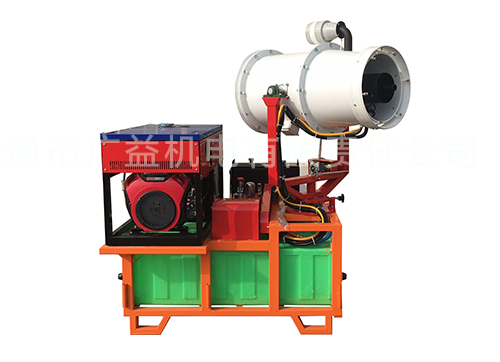

Features:

● Honda twin-cylinder OHV gasoline generator set, stable, reliable and low noise;

●High range (22-28 meters), good penetration;

●Using automatic control and remote control operation (can be operated in the cab), the operation is simple and convenient;

●Ultra-low volume, low volume, constant spray, saving medicine, high drug utilization rate, and low pollution;

●Stable combustion smoke injection device can be installed;

●The spray barrel swings up and down automatically, and the level is manually adjusted (automatic steering device can be added);

● Equipped with a 50-meter medicine delivery tube for constant spraying;

●Low labor intensity and high working efficiency (can prevent and control 100-160 acres per hour), low control cost;

●The sprayer can be separated from the car body to improve the utilization rate of the car;

●At leisure, it can be used as a generator;

●Pickups (Qingling, Zhengzhou Nissan, Great Wall, etc.) can be provided according to customer requirements.

● Passed the national 3C compulsory certification, the Ministry of Agriculture agricultural machinery promotion identification.

Scope of application:

●Prevention and control of diseases and insect pests in tall forest trees such as the Three North Shelterbelt, Field Net Shelterbelt, Fast-growing Timber Poplar Forest, Economic Forest, Greening Trees on Both Sides of Highways, and Urban Street Trees.

●Quickly kill locusts and control large-scale agricultural and forestry diseases and insect pests.

●Sterilization and deworming of large-scale outdoor areas such as urban greening, garbage dumps, and large stadiums.

Main parameters:

model：6HW-50I

power：12kW/3600rpm

Fog spectrum range：50-150μm

Nozzle angle：vertical-15°-85°Level0°-270°

Vehicle speed：5-10Km/h

Spray volume：80-600L/h

Range：vertical22-28m,Level40-50m

Net Weight：450kg

Medicine box capacity：standard400L(Can be customized according to customer requirements)

Dimensions：1670×1200×1820mm
